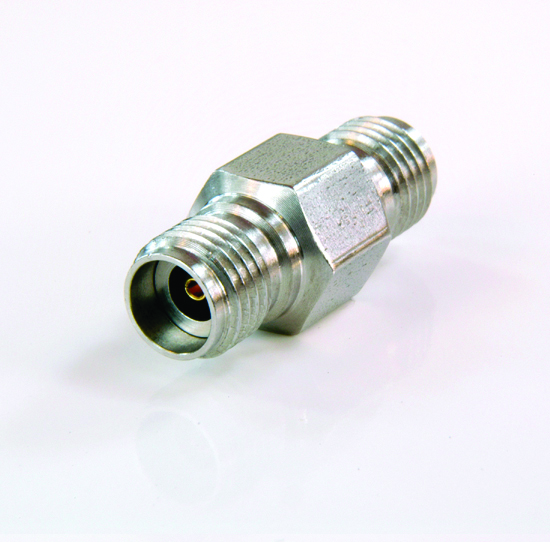

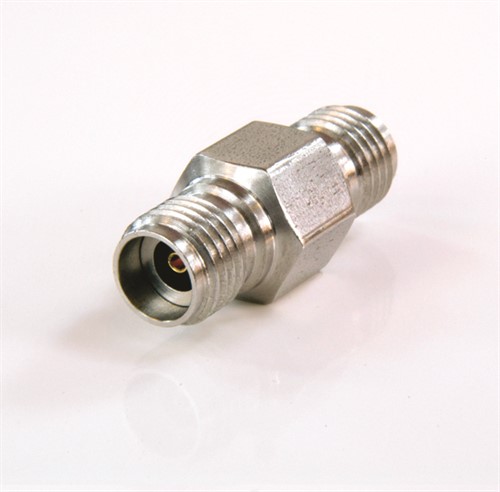

In Series 40 GHz 2.92mm (K)
Model1032-00SFSeries
2.92mm (K)
Gender
Female – Female
Frequency (GHz)
40, 36, 33, 27, 18
Mounting
Inline
Features
•Mode Free Through 40.0 GHz
•Low VSWR
•DC to 27.0 GHz……1.10:1 max
•27.0 to 40.0 GHz….1.15:1 max
•Minimum VSWR Contribution When Used as Connector Savers
•Performance Consistency Unit-to-unit
•Temperature Rating -55°C to +165°C
Interface
•Per MIL-STD-348 SMA Figs. 323-1 and 323-2
Construction
•Housing: Stainless Steel, Passivated
•Contact: Beryllium Copper (BeCu) Gold Plated Per MIL-G-45204
•Center Contact Capture: Ultem 1000 Per ASTM D5205 and KEL-F Per ASTM D1430
