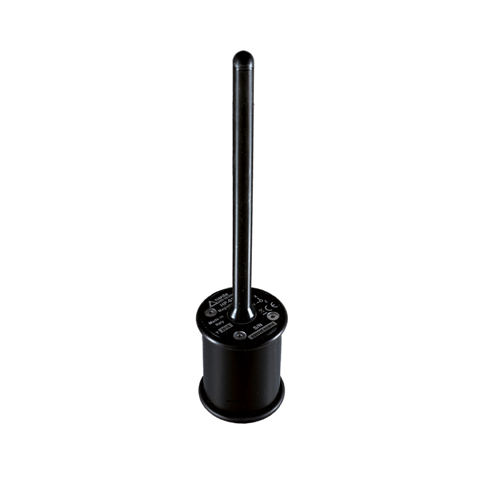

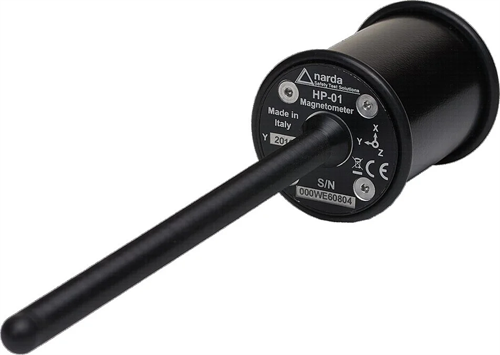

The HP-01 magnetometer is a measuring device for measuring static magnetic fields and time-varying fields up to frequencies of 1000 Hz. The main application is the measurement of high static fields to ensure the safety of people who have access to such areas.
Highlights
- Evaluation of field exposure in accordance with current standards and regulations such as Directive 2013/35/EU for workplaces
- Frequency-selective and broadband measurement of magnetic fields from 0 Hz to 1000 Hz
- Direction-independent (isotropic) measurement with orthogonally arranged Hall sensors
- Extremely wide measuring range from 10 µT to 10 T (dynamic range 120 dB)
- FFT spectrum analysis and time history display
- Narrow-band filter for standard-compliant measurement in the 0 Hz to 1 Hz range
- Optical interface
- Narda STS
- The measuring device includes a very powerful FFT analyzer that enables signal analysis in both the time and frequency domain.
The fast signal processing makes it possible to perform a detailed and complete analysis of the frequency spectrum with high accuracy. The results can be displayed as a live spectrum, as a spectrogram over time or as a three-dimensional waterfall diagram.
For use in fields up to 30 mT, the HP-01 can alternatively be mounted directly on the NBM using the threaded coupling adapter provided.
When measuring with a long fiber optic cable, the HP-01 can be mounted on a tripod using the tripod mount.
